Penn Elcom rack drawer, 5U, 285 mm deep, Heavy Duty, with handle
| Article number: | R2292-10-5Uk |
| Availability: | On backorder |
| Delivery time: | 2-3 workdays |

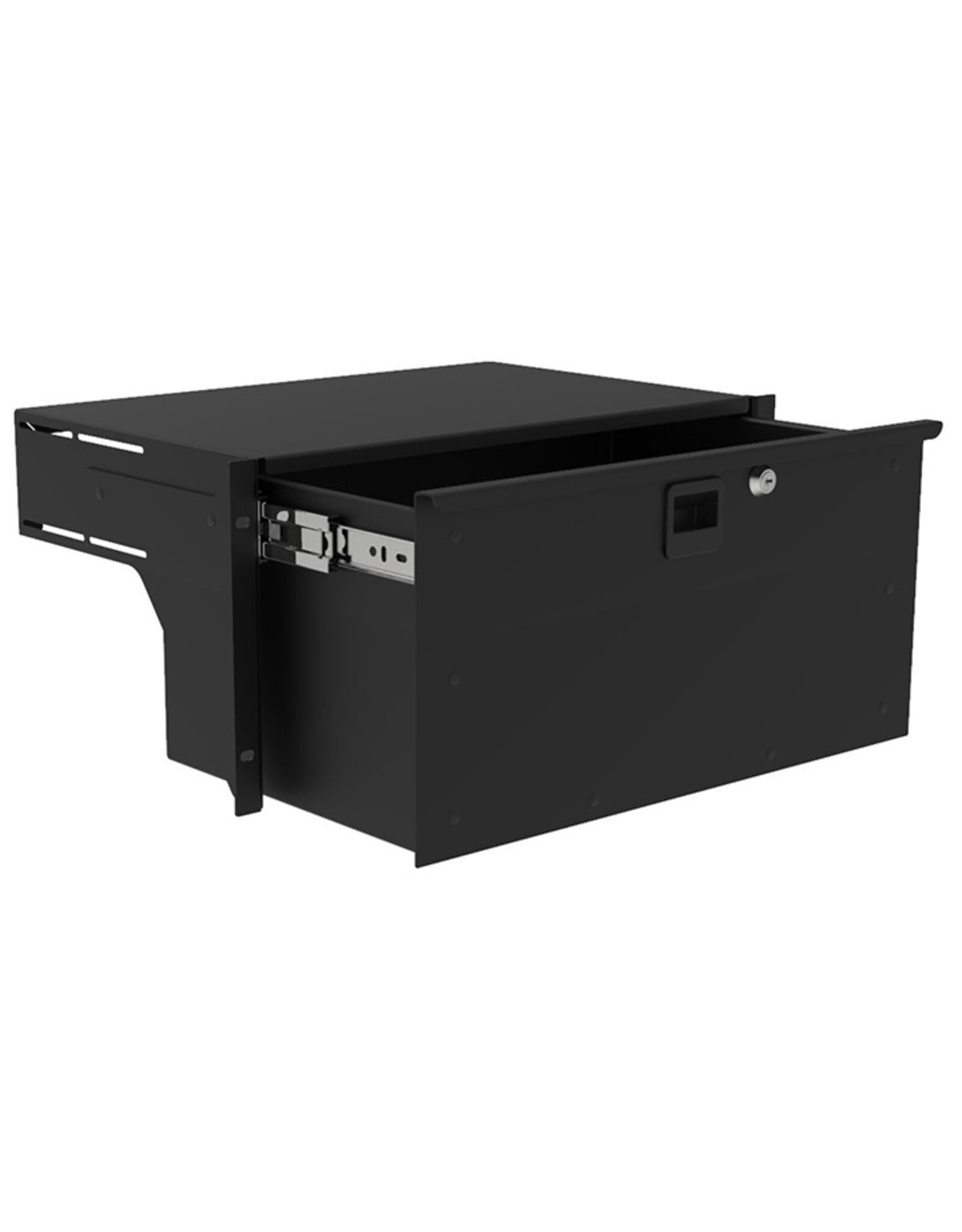

Penn Elcom rack drawer with lock, 285 mm deep, 5U high, Heavy Duty, steel, black.
Description
This lockable Tour Grade Heavy Duty rack drawer is fitted with a cylinder lock. Supplied with 2 keys. The drawer with integrated handle is removable by means of 2 latches on the drawer guide.
The rack drawer is made of 1.2 mm black powder-coated steel. As the rack mounts are made of 2 mm thick black powder-coated steel, they are given the Heavy Duty label.
Replacement lock 3232-SLAM-LOCK available.
Features and benefits
- Tour Grade Heavy Duty rack drawer
- Front panel with integrated handle
- Reinforced rackmounts (2 mm thick)
- 2 pieces of M25/M40 cable gland knockouts for cable access at the rear
- Complete with rear support bracket kit R2292-RSB-KIT
- Supplied with 2 keys
Technical information
- Thickness: 1.2 mm steel
- Colour: black powder coated
- Weight: 6000 grams
- Load capacity: 35 kg
- Mounting: 4 pcs M6 metal screws

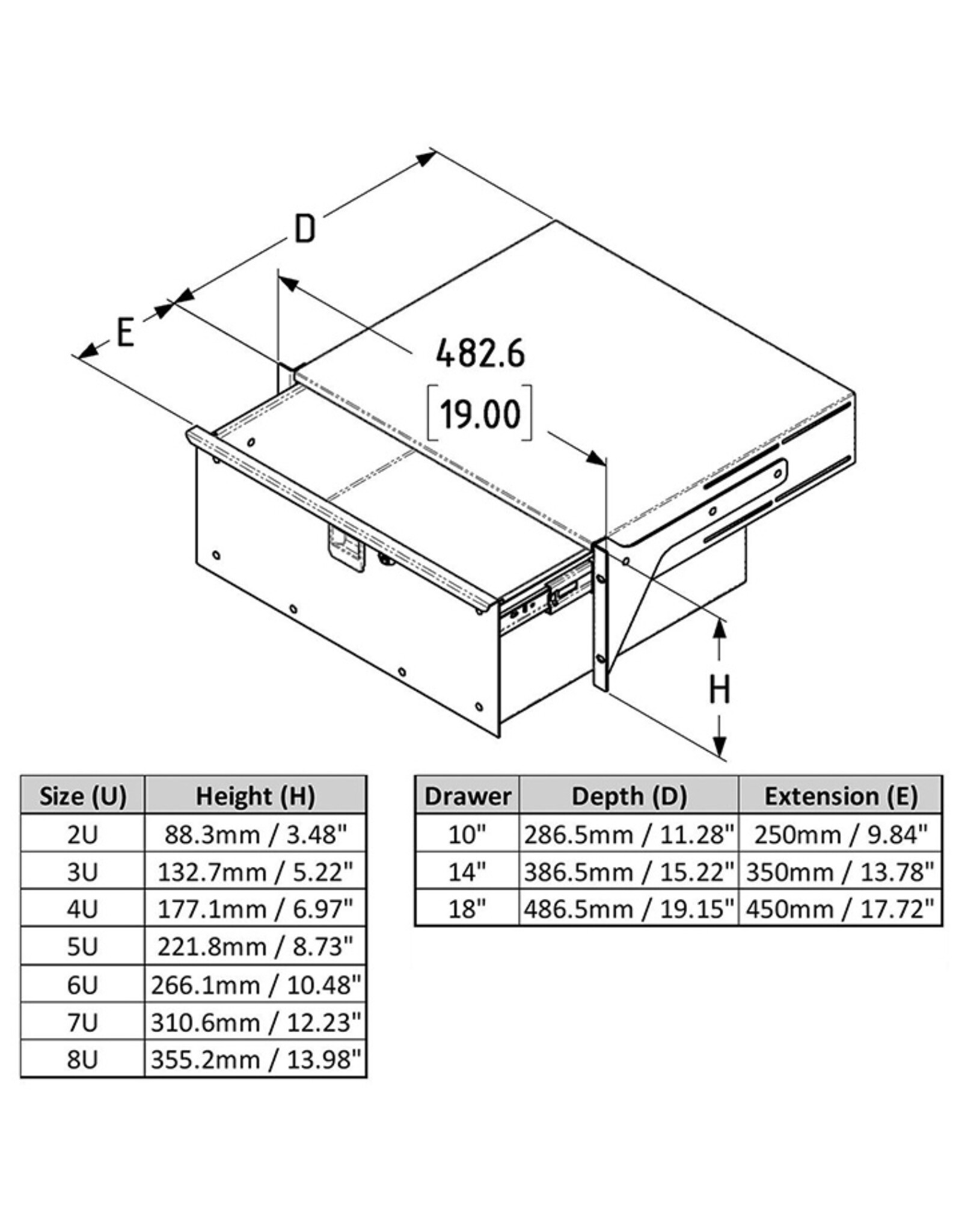

External dimensions
- Width: 482.6 mm (19.0 inches)
- Height: 221.8 mm (8.73 inches)
- Depth: 286.5 mm (11.28 inches)
- Drawer extension length: 250 mm (9.84 inches)
Internal dimensions
- Width: 409 mm (16.1 inches)
- Height: 208 mm (8.19 inches)
- Depth: 275 mm (10.83 inches)
