Open tower rack system R8230
| Article number: | R8230-TB |
| Availability: | In stock (2) |
| Delivery time: | 1 business day |

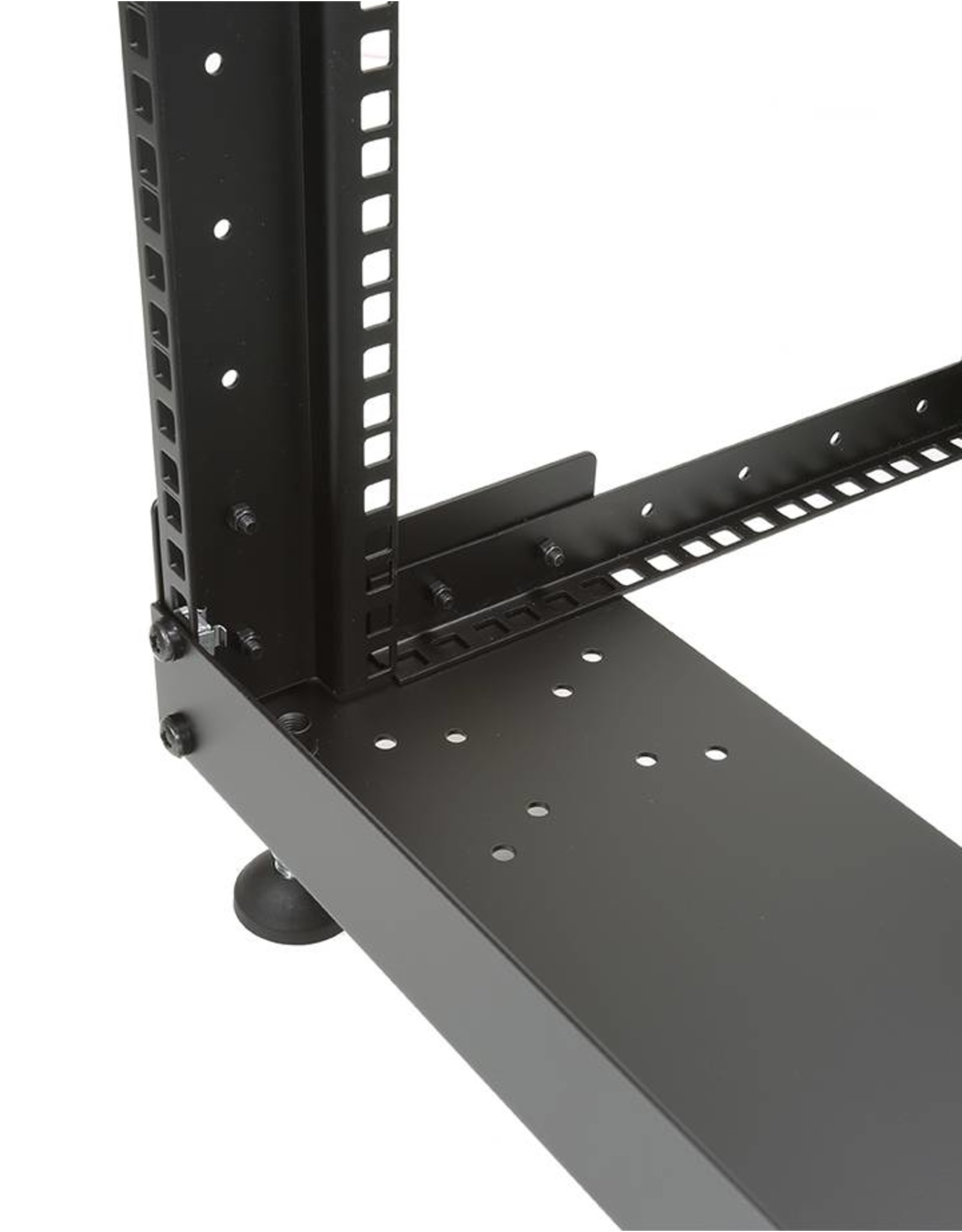

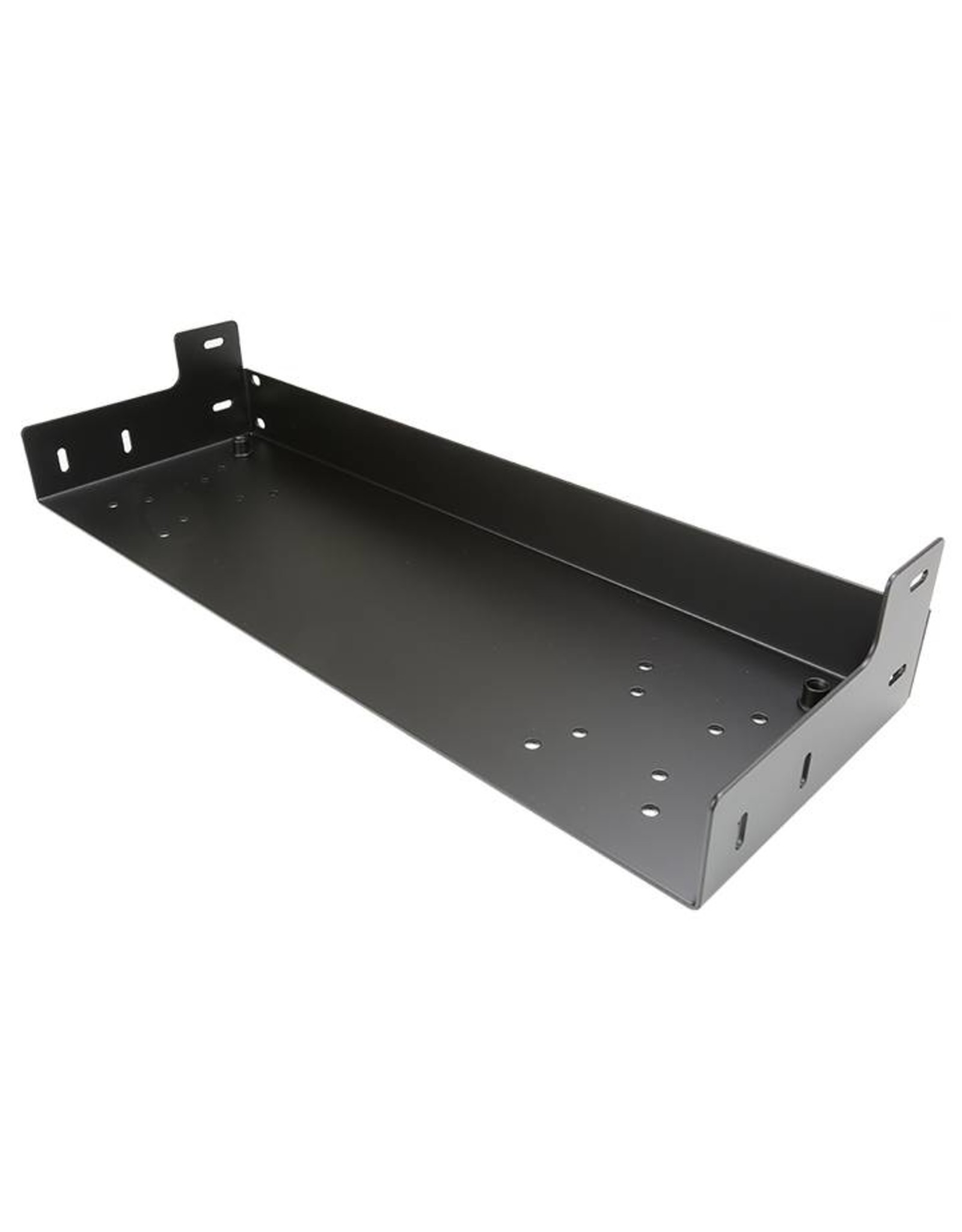

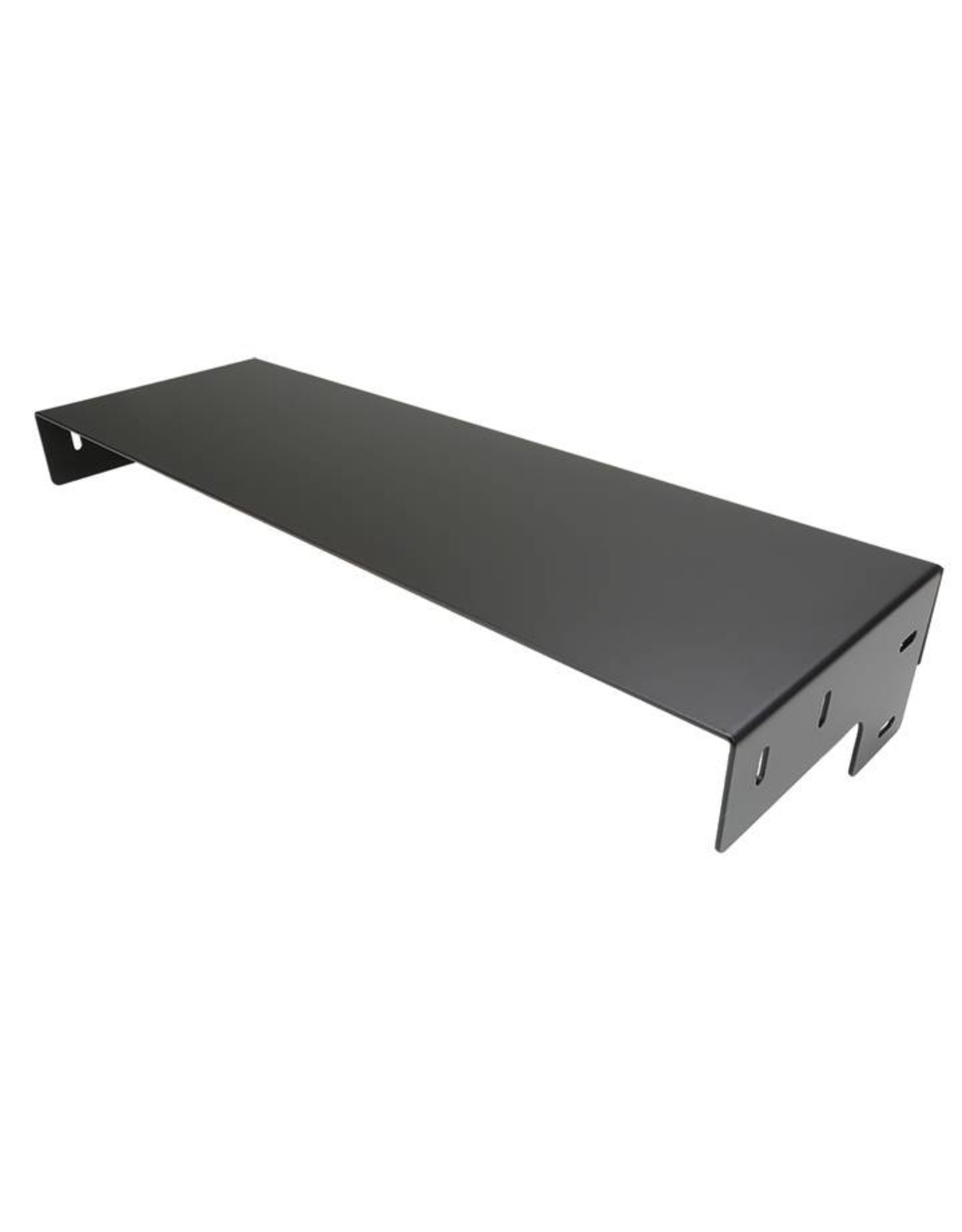

Penn Elcom bottom- and top-unit for R8230 rack with mounting slots for wheels and adjuster feet

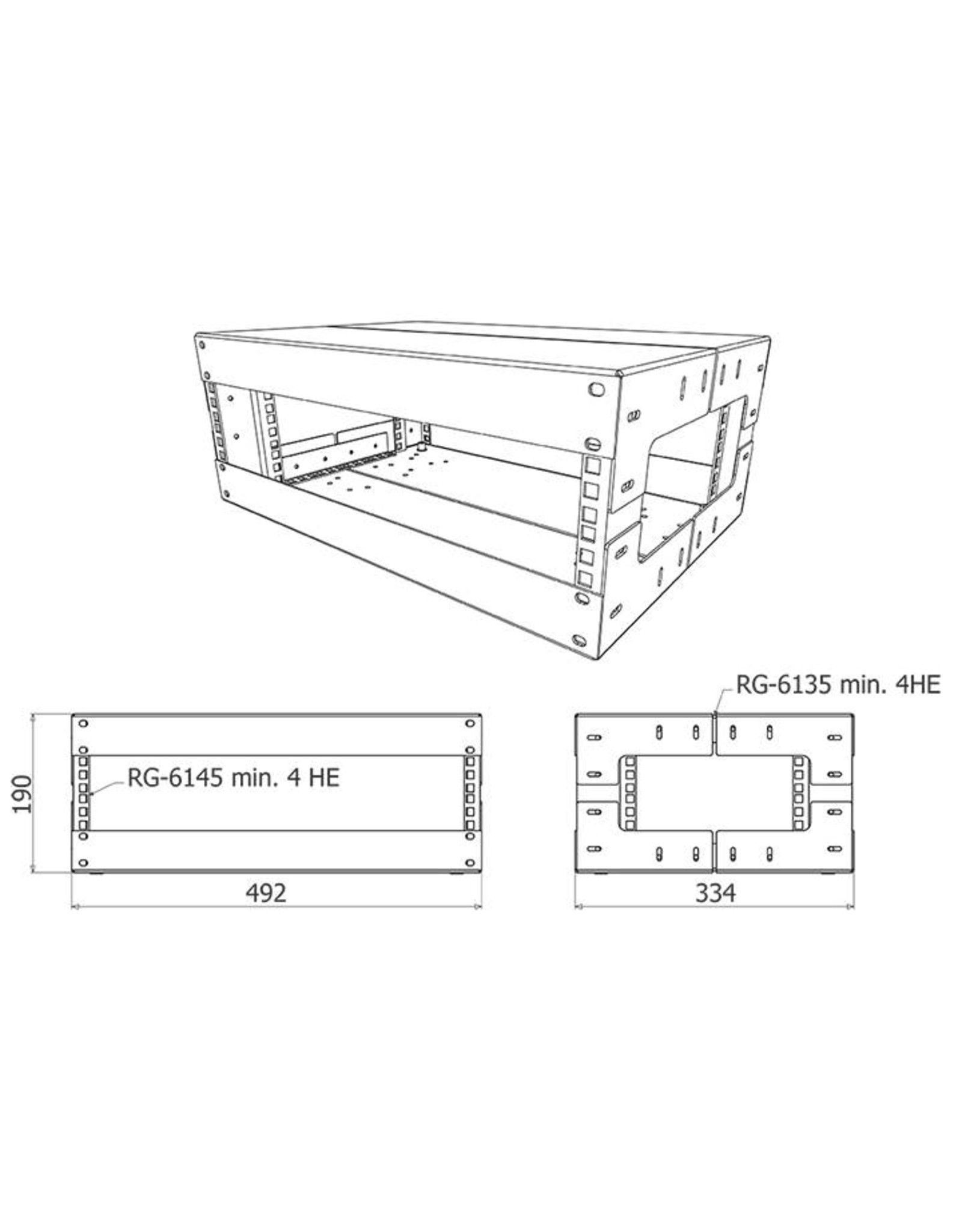

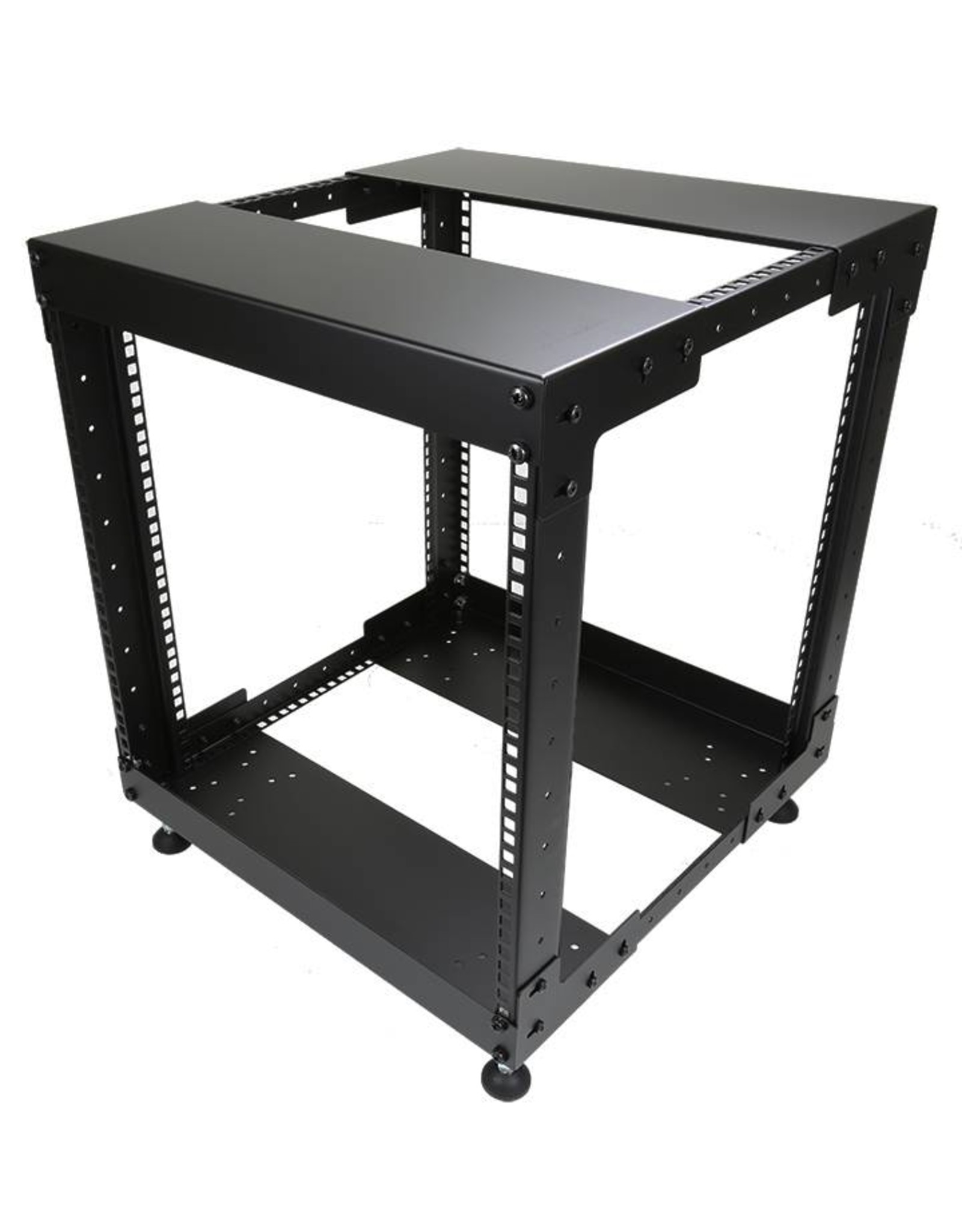

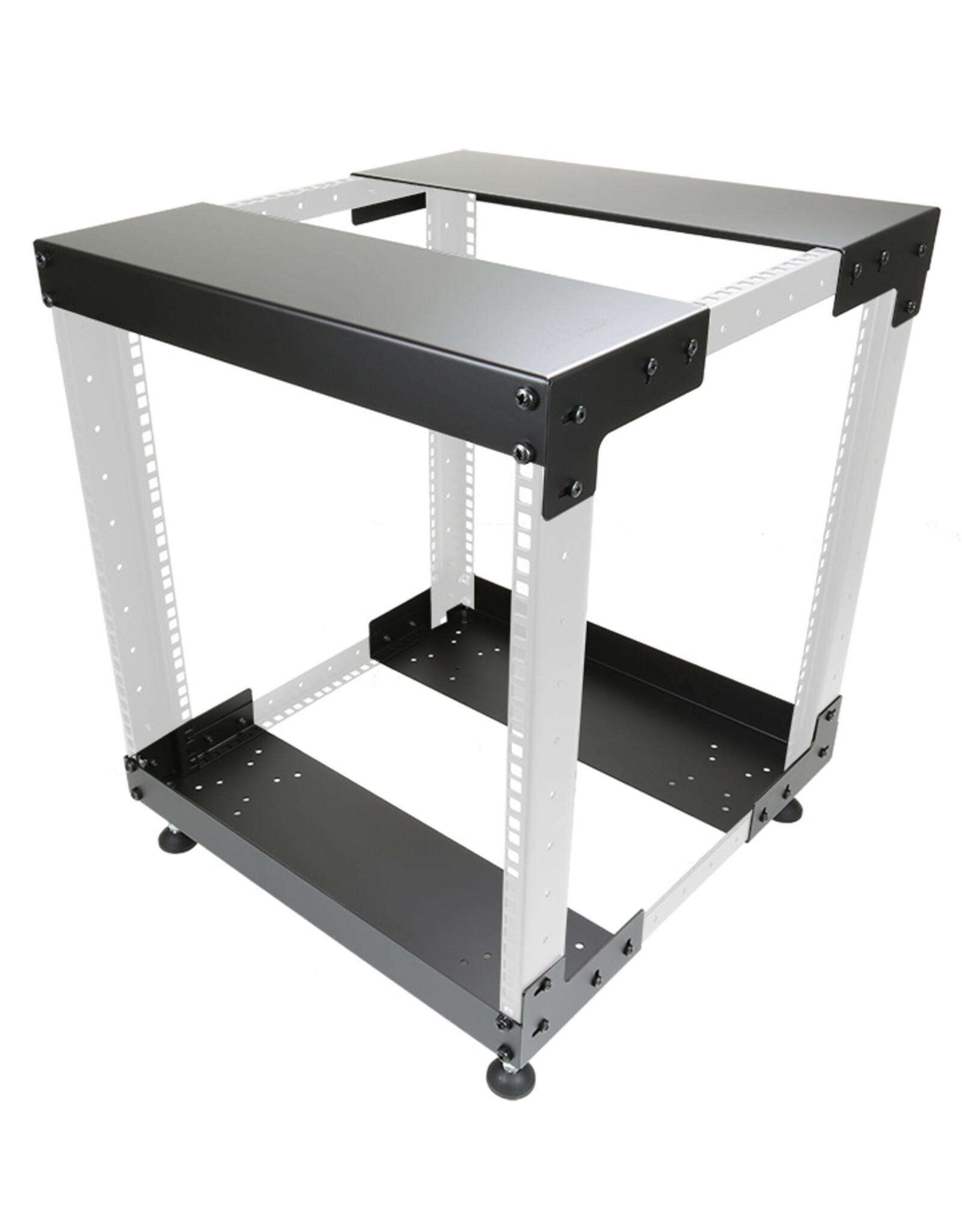

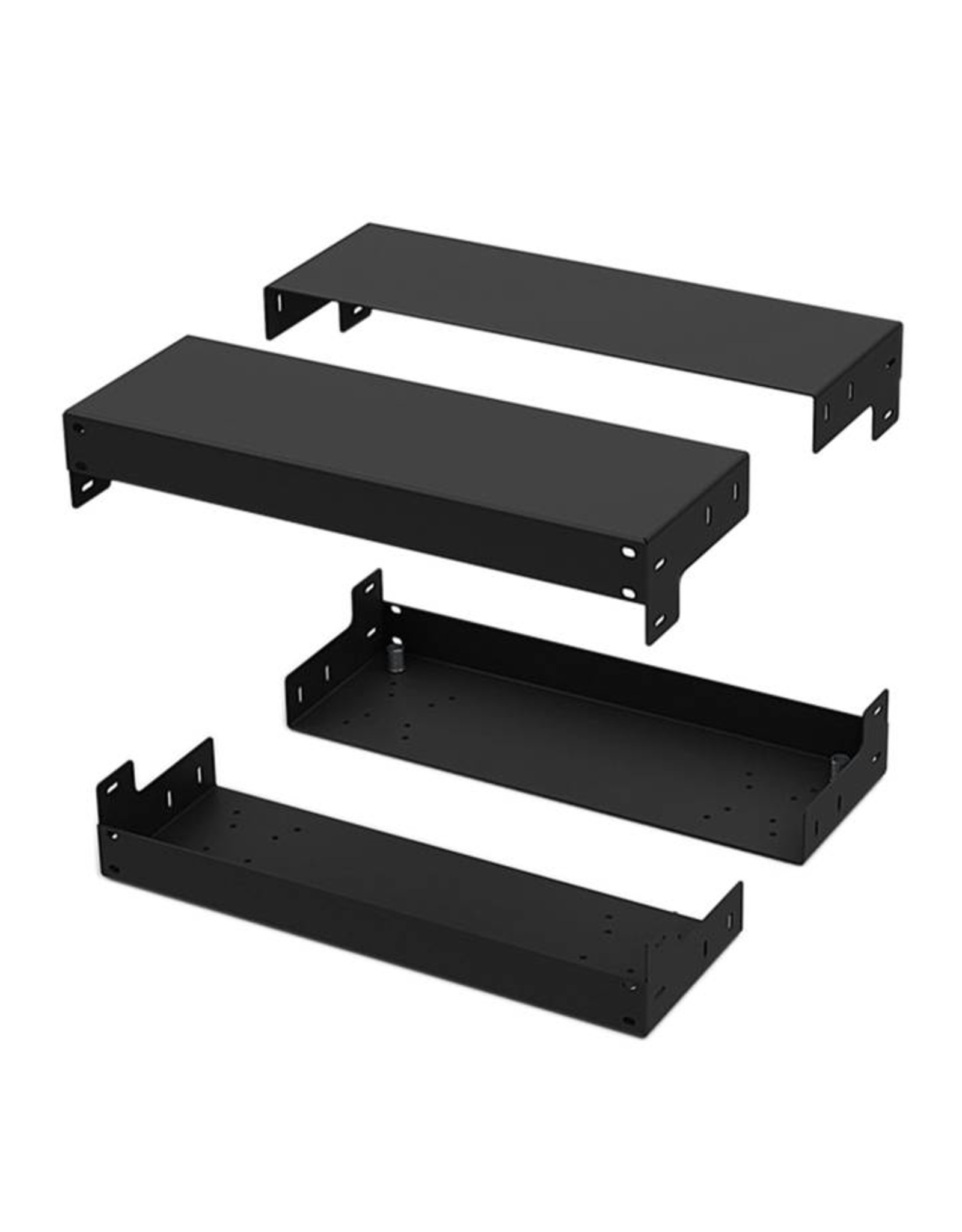

This R8230-TB open tower rack system consists of two bottom- and two top-units. Height is put together with rack extrusion RG-6145. Take into account that by installing the top- and bottom-unit, the first 2U of the extrusion cannot be put to good use. For the depth the RG-6135 rack extrusion is used, from at least 4U. Screw set R8230-SP20 is sold separately.
Fastening set R8230-SP20 must be ordered separately.
Height rack strip, 4 pieces RG-6145-04 to RG-6145-20 must be ordered separately.
Depth rack strip, 4 pieces RG-6135-04 to RG-6135-20 must be ordered separately.
- Thickness: 2 millimetre
- Material: steel
- Width: 492 millimetre
- Minimal depth: 334 millimetre
- Minimal height: 190 millimetre
- Weight: 7600 grams
- Colour: black powder coat
- Manufacturer: Penn Elcom
- Mounting sockets for wheels
- Mounting sockets for adjuster feet
- Required mounting set R8230-SP20

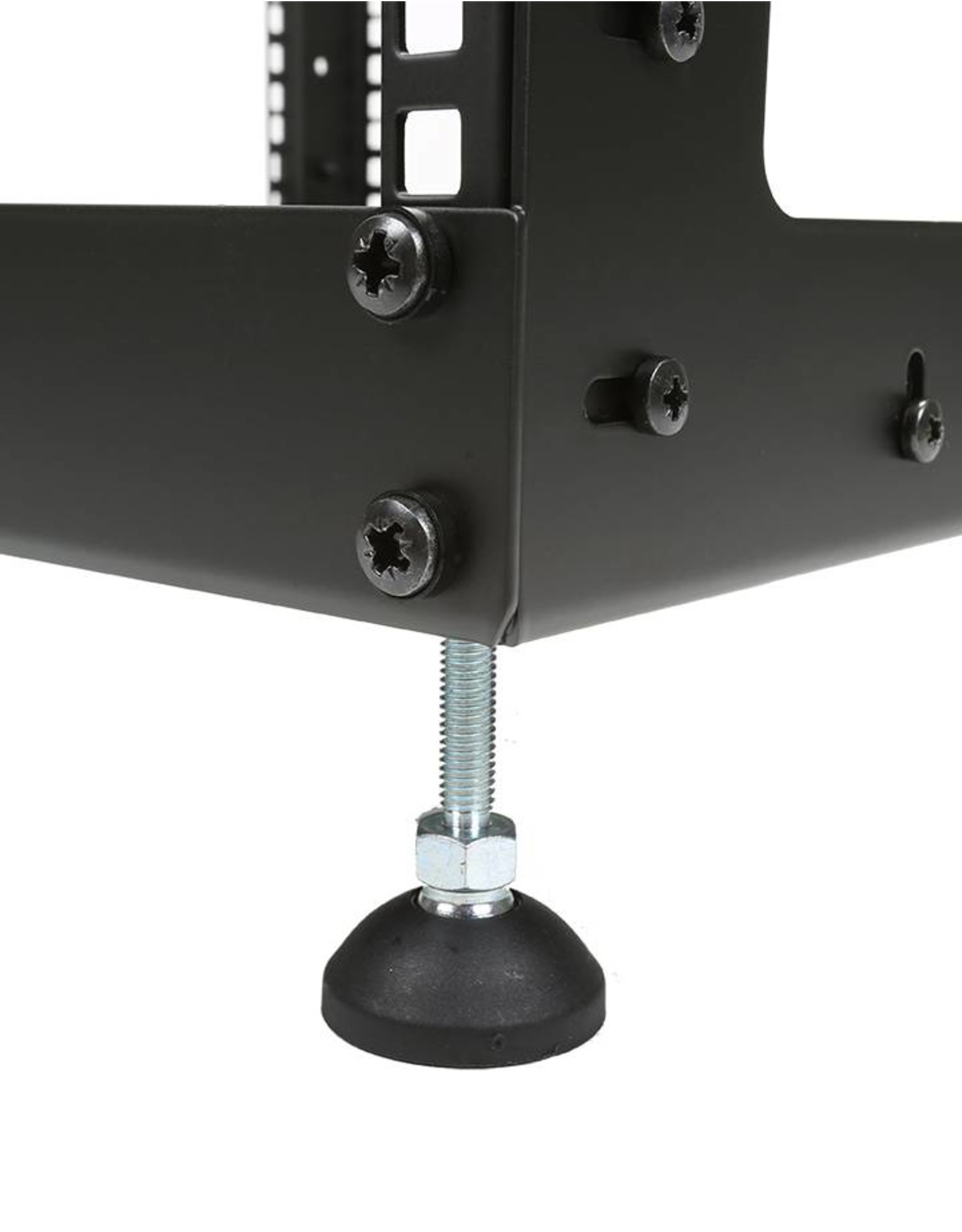

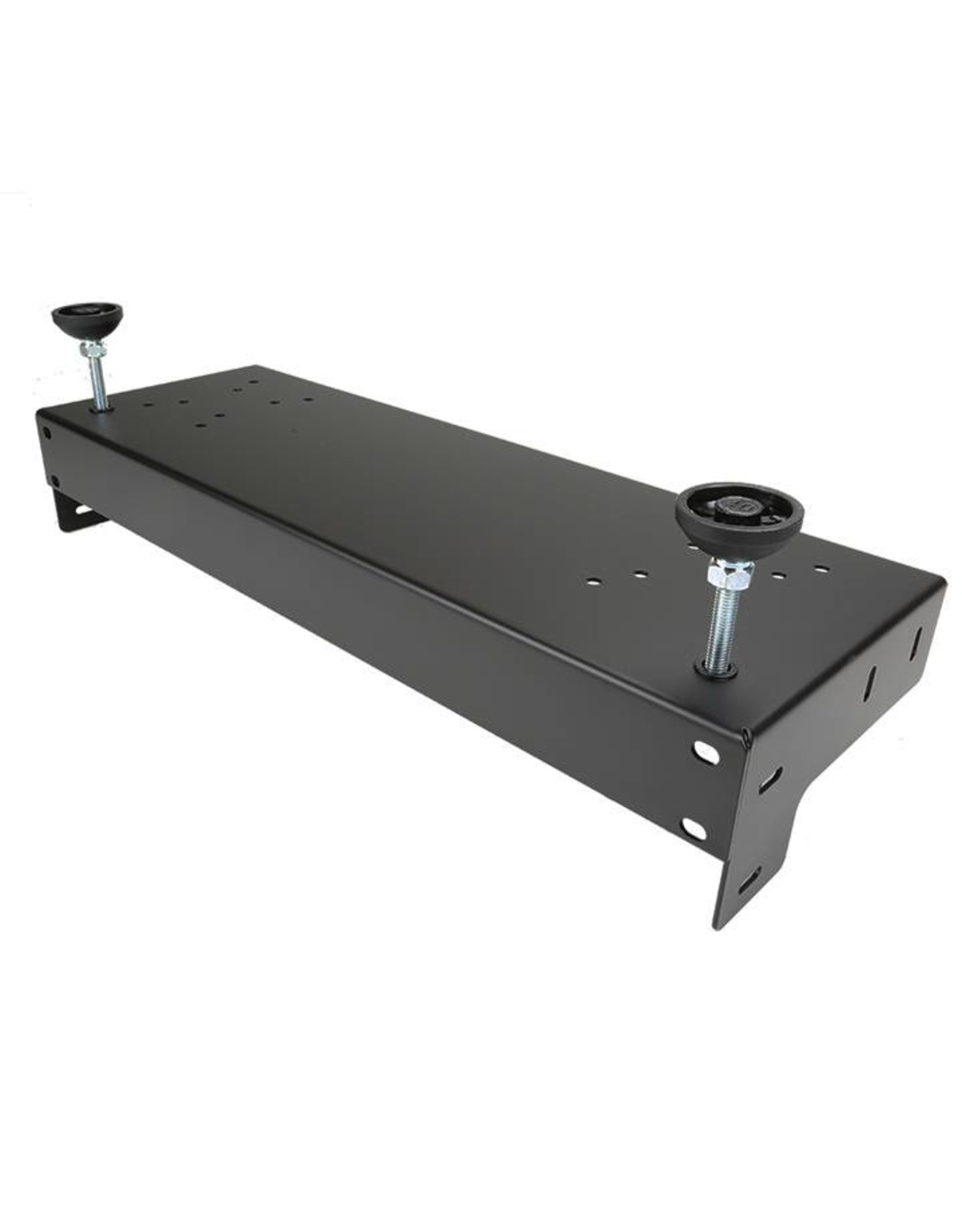

- Optional adjuster foot F3000

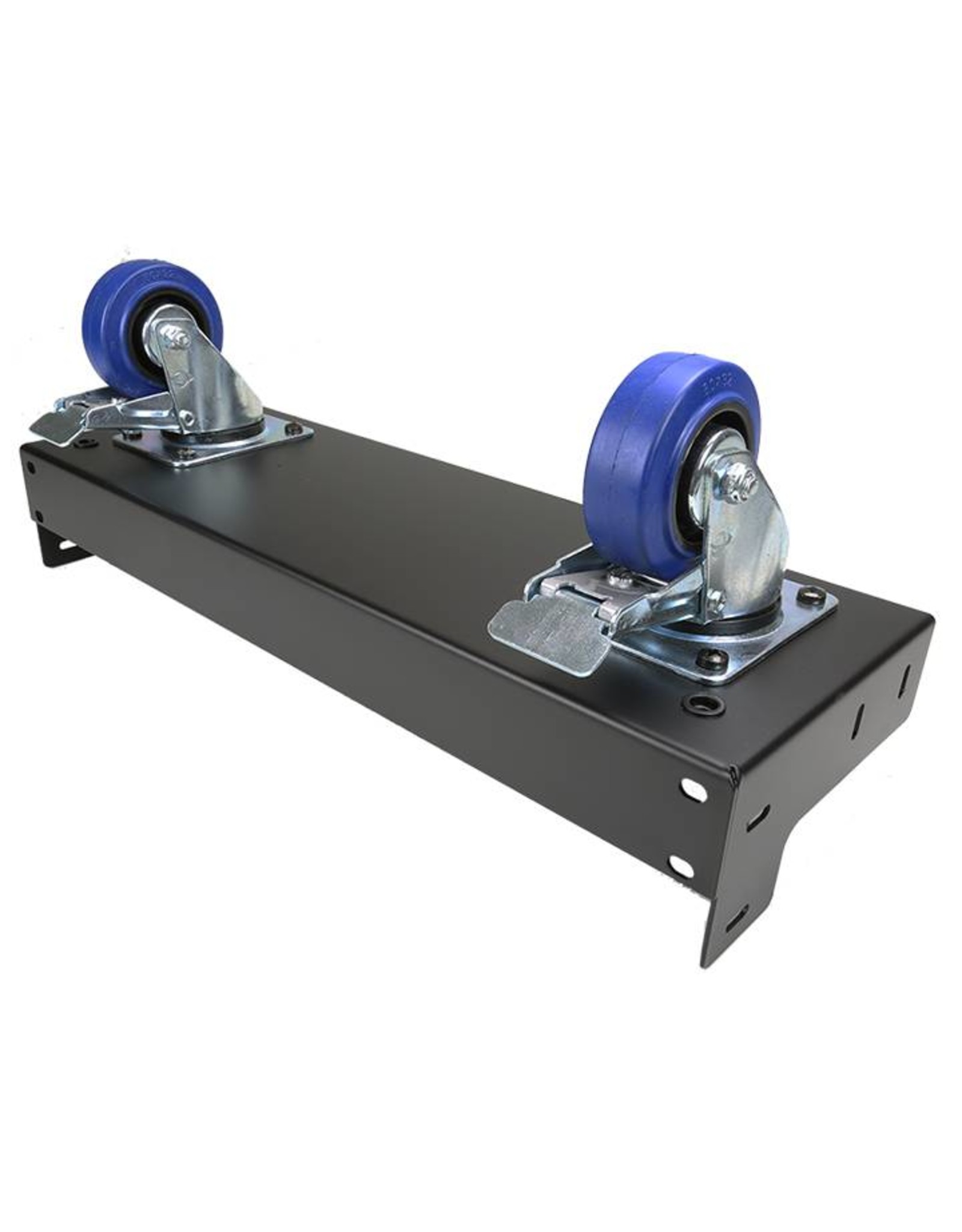

- Optional wheels W0985/80 (with brakes)
- Optional wheels W0990/80 (without brakes)
